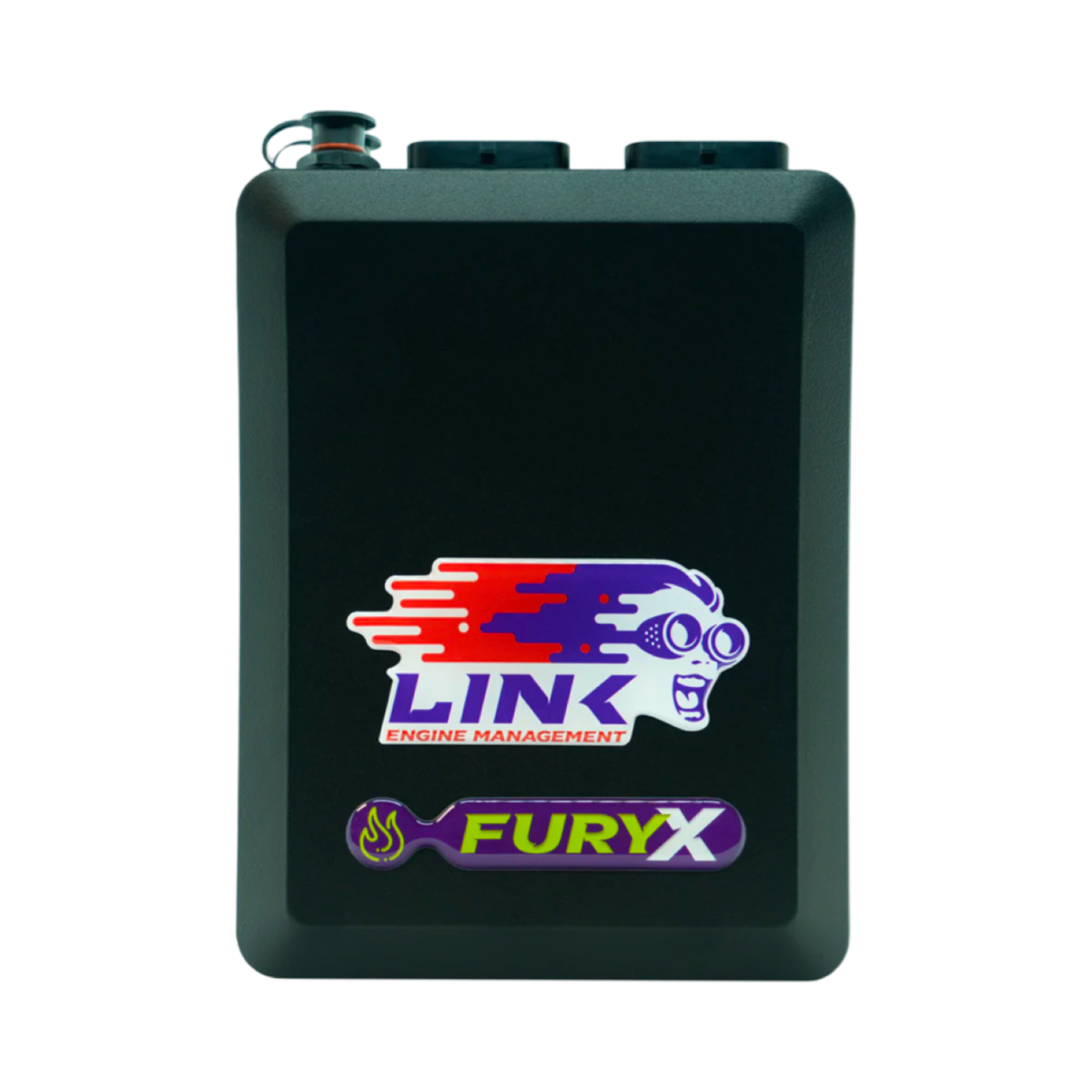

LINK ECU - G4X FURYX

Premium ECU with on-board digital wideband

The FuryX is a premium ECU like the XtremeX, but with the addition of on-board digital wideband lambda control. Built on the G4X platform, the FuryX offers a faster processor, quicker communications and an astounding 512MB of data logging!

With eight injector drives and six ignition drives, the FuryX can control sequential injection and direct spark for up to three rotors or six cylinders, making it the perfect choice for professional level motorsport and more demanding road car applications.

The addition of an on-board digital wideband lambda controller improves the unit's accuracy and simplifies setup.

The FuryX comes with stickers, a quick start guide, a mounting bracket and a USB tuning cable. You will need an "A" and "B" Roam or an "A" and "B" pin kit, which are not included.

For detailed specifications, please see the Specifications tab.

If you need more inputs, outputs or functionality, consider the Thunder ECU.

Specification Summary:

【input】

• 8/10* x Digital Inputs
• 4 x Temperature Inputs
• 9 x Analog Inputs
• 2 x trigger inputs
• 2 x knock inputs
• 1 x LSU 4.9 wideband lambda sensor input

【output】

• 8 x injection drive
• 6 x Ignition Driver
• 10 x Auxiliary Outputs^
• +5V sensor power supply
• +8V sensor power supply
  ^ Unused fuel and ignition drive can be used as additional auxiliary power

【communication】

• 2* CAN Bus
• 1 x Serial (RS232) connection
• 1 x USB Tuning Connection

[Physical specifications]

• Size: 185mm (L) x 130mm (W) x 40mm (H) (without rom)
• Weight: 680g

*DI 9 and 10 pins are used for the second CAN bus

What's in the box:

Includes USB tuning cable and mounting bracket.

Requires "A" and "B" ROHM or "A" and "B" connector kit (sold separately).

*Only available when manufacturer stock is available.

If the manufacturer is out of stock, delivery may take more than a month.
