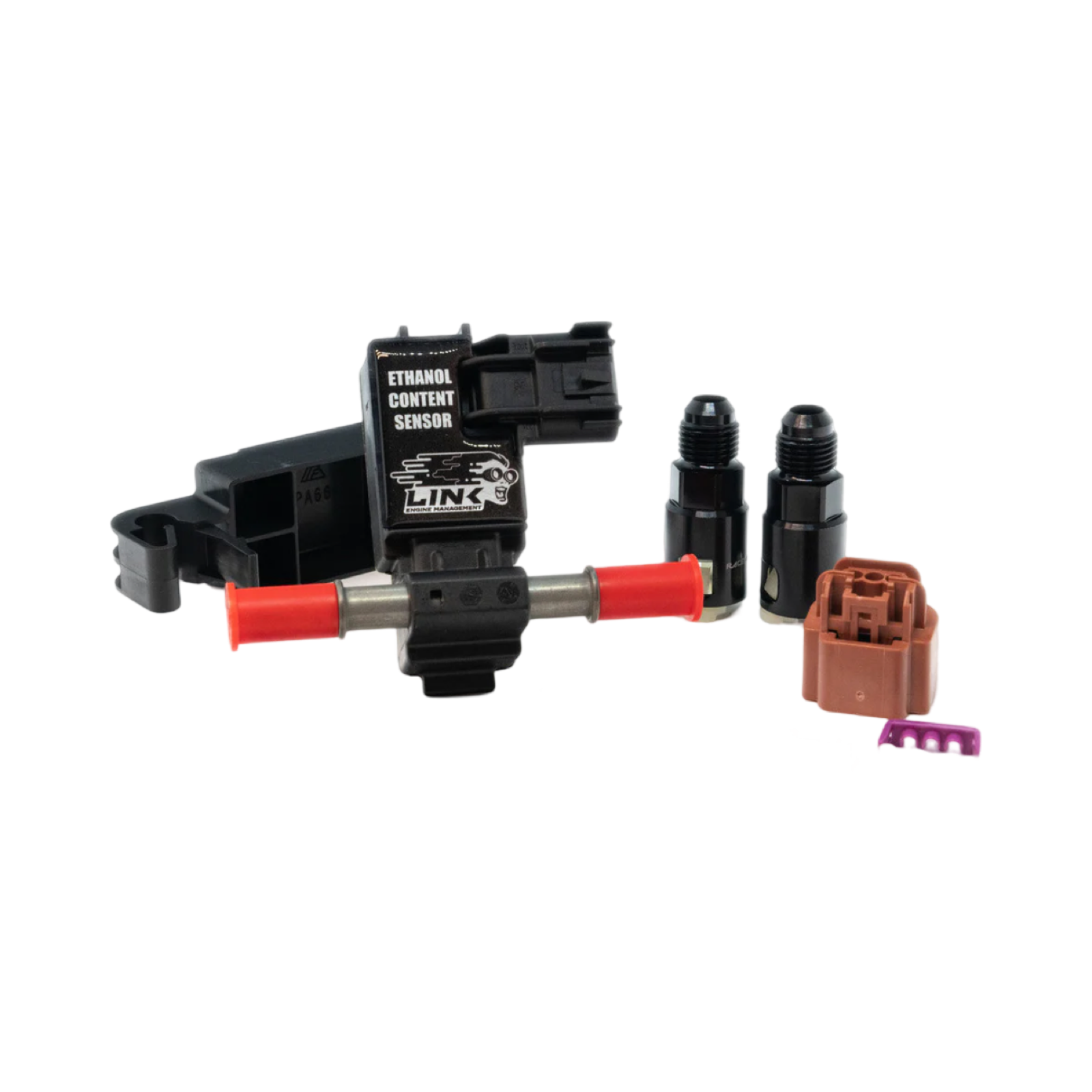

LINK ECU - ETHANOL CONTENT SENSOR - #ECS

Are you looking to go flex-fuel? Then the Ethanol Content Sensor is a must.

The ethanol content sensor measures the mixture ratio of ethanol to gasoline in flex-fuel vehicles, as well as the fuel temperature.

Compatible with all current Link Wire-In and Plug-In ECUs.

On the ECU side, one digital input is used.

The sensor is mounted on the fuel return line between the fuel pressure regulator and the fuel tank.

【specification】

• AN-6 fitting included
• Plug & pin kit included

Technical Specifications:

The pinout is written on the sensor body (from left to right as viewed from the connector side):

1.) Vcc (+12V power supply)

2.) GND (Ground)

3.) Vout (digital signal output)

*Delivery time is limited to cases where the manufacturer has stock.

If the manufacturer is out of stock, delivery may take more than a month.

If you are in a hurry, please contact us before purchasing.
