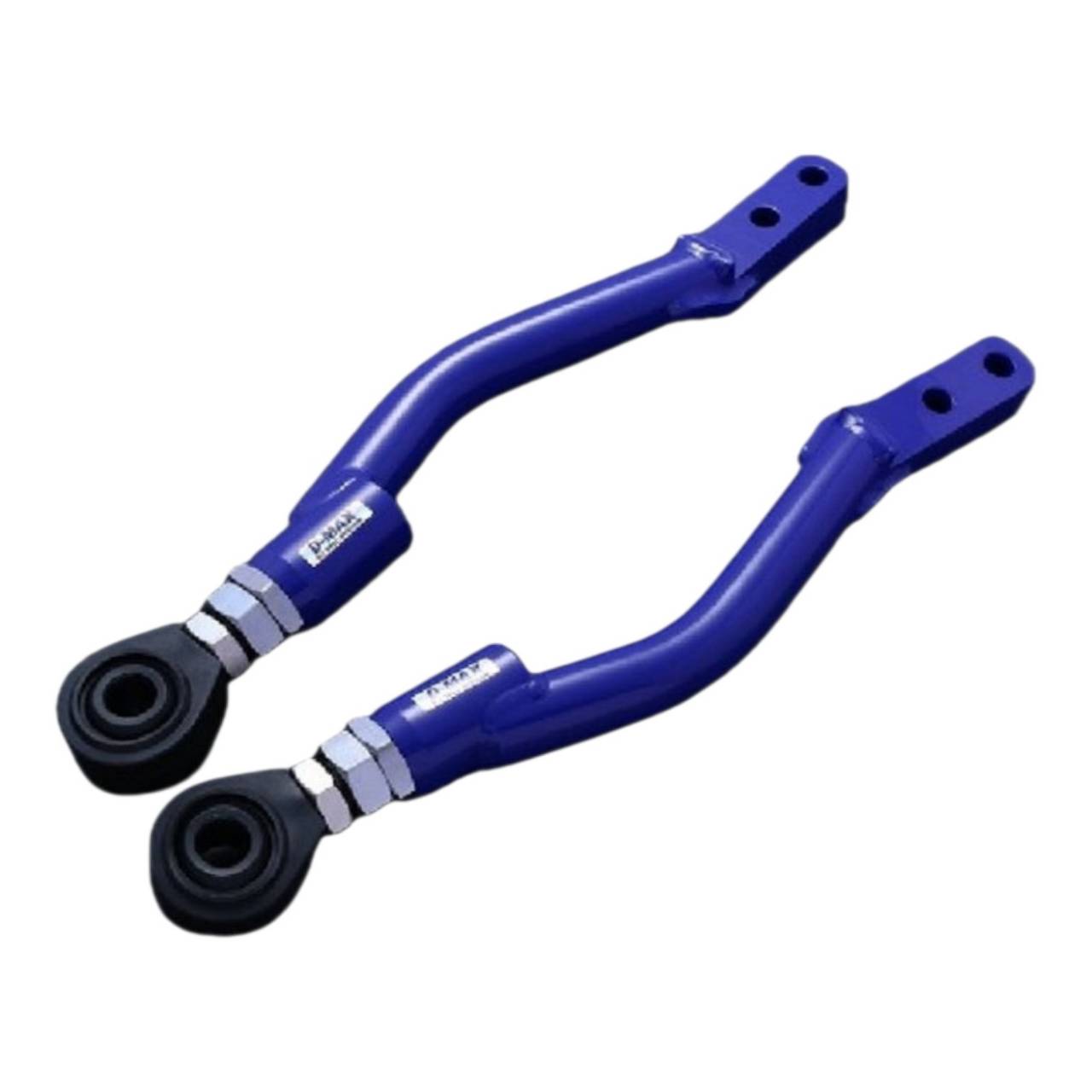

D-MAX/ D1SPEC Pillow tension rod offset type Ver2 -NISSAN SILVIA
Manufacturer | D-MAX D-Max |
brand | D1SPEC |
Delivery Time | Ships in 1-3 business days (If the manufacturer is out of stock, it will take approximately one month.) |
Ver2 is designed with a completely different shape from the Ver1 that we previously sold. Although we have made numerous improvements to Ver1 to enhance its strength, the recent emergence of high-grip tires, extended lower arms, and knuckles with unprecedented steering angle increases has resulted in loads on the tension rods exceeding the data, leading to the development of Ver2. To address the strength deficiency, we have revised the structure itself and improved the maximum clearance. The improved Ver2 offers a wider range of settings than was previously limited.
■ Specifications
Rod diameter | 28Ф (maximum part 35Ф ) |
Rod thickness | ― |
Pillow outer diameter | 45Φ |
Pillow body diameter | 18Φ |
| Adjustment method | Turnbuckle type |
Adjustment screw pitch | 1.5 mm |
Adjustment width | 35 mm (for both Series 13 and Series 14 ) |
*Please note that the inside of the tire (wheel) will interfere with the genuine stabilizer before this product does.
■ Accessories
bolt | 4 bottles |
nut | 4 pieces |
Color (Large) | 2 pieces |
Color (small) | 2 pieces |
Pillow rubber color | 2 pieces / standard equipment |
■ Compatible Models
S13 series | (R)PS13/A31/C33/HCR32/Z32/Y32/Y33 |
S14 series | S14/S15/C34/C35/WGC34 |
Not compatible | Not compatible with 4WD vehicles / Cannot be installed due to interference with the R33/R34 stabilizer. |
*Since it uses a turnbuckle adjustment system, the length can be adjusted while it is installed on the vehicle.
