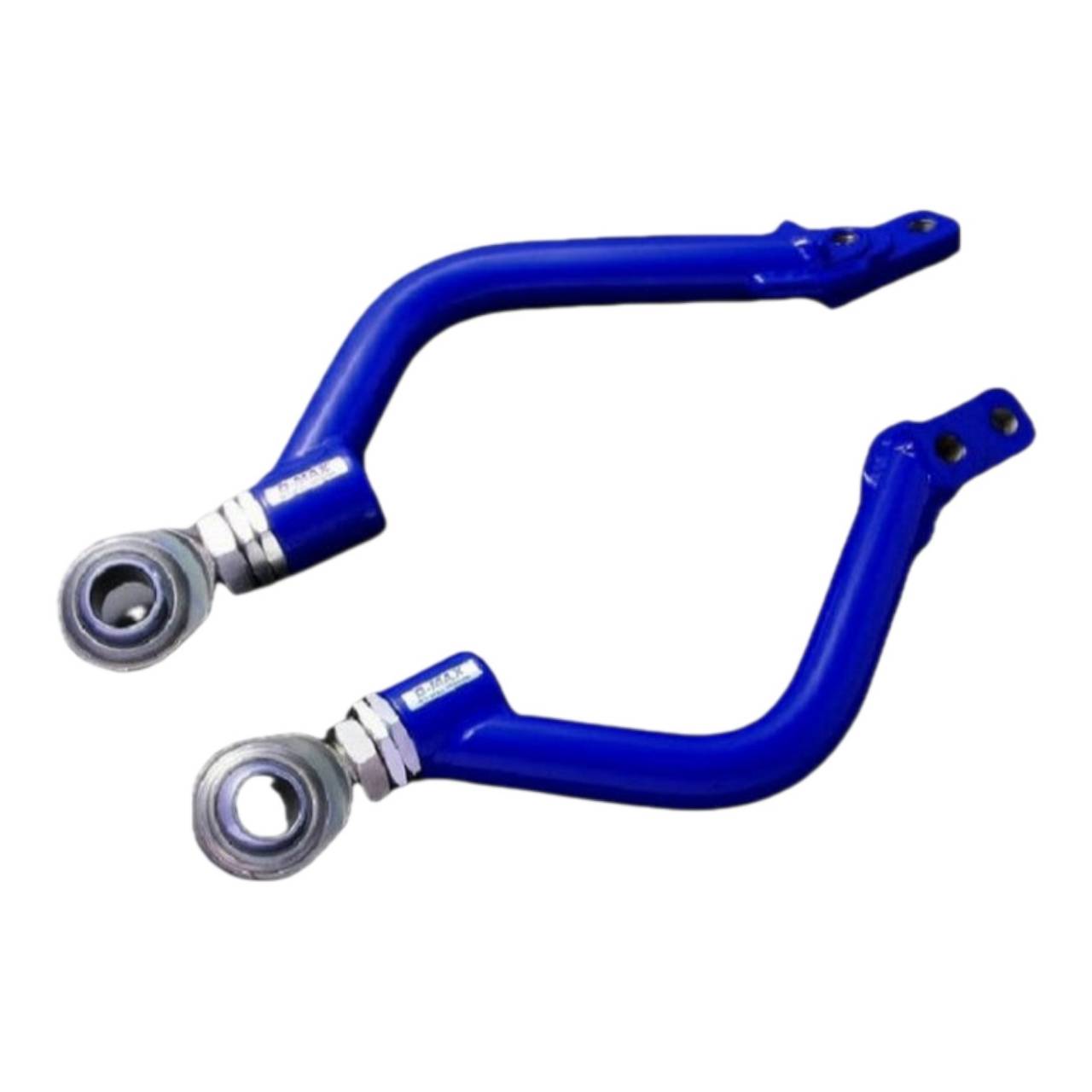

D-MAX/ D1SPEC Front pillow tension rod for TOYOTA JZX
Manufacturer | D-MAX D-Max |
brand | D1SPEC |
Delivery Time | Ships in 1-3 business days (If the manufacturer is out of stock, it will take approximately one month.) |
Based on the genuine tension rods of the ZX110 series, the clearance has been greatly improved! (Compared to the genuine JZX110 part, the clearance is increased by +27mm) D1GP drivers have repeatedly tested the strength to prove it. Of course, steering feel and cornering performance are also improved, and for the 90/100 series, increasing the steering angle was previously limited, but with these tension rods, the range of suspension settings is greatly expanded.
■Specifications
| Rod diameter | 29Φ |
Rod thickness | ― |
Pillow outer diameter | 51Φ |
Pillow body diameter | 22Φ |
Adjustment method | Turnbuckle type |
Adjustment screw pitch | 1.5 mm |
Adjustment width | 30 mm |
■Accessories
color | 4 pieces |
Washer | 4 sheets |
90 series specific bolts | 4 bottles |
Bolts specifically for the 100 series | 4 bottles |
*For JZX90 series, please use the included black screws. For JZX100/JZX110/SXE10, please use the included silver screws.
■ Compatible Models
Compatible | GX90/JZX90/GX100/JZX100/JZX110/SXE10 |
Not compatible | 4WD versions of the above models : JZA80/JZZ30/JZS160 |
*Product improvements were made to the mounting shape of the arm on March 7, 2014. *Product improvements were made on August 1, 2015, due to the addition of a reinforcing plate.
